Top Menu functions

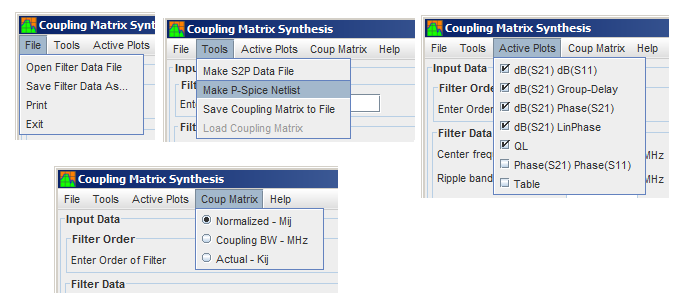

The top menu bar has drop-down functions for:

  • Saving new design files
  • Loading previously saved design files
  • Printing (screen dump)
  • S parameter file generation in Touchstone (S2P) format
  • Generation of Spice netliste, which allows export of CMS designs into circuit simulators like ADS, Microwave Office etc. MWO_Netlist, ADS_Netlist
  • Saving coupling matrix in text file. The coupling matrix is saved in normalized format (Mij)
  • Loading a previously saved coupling matrix
  • Active plots: Selection of plot types which can be viewed in the graf display
  • Choice of format for displaying coupling coefficients
  • Manual (this document)
